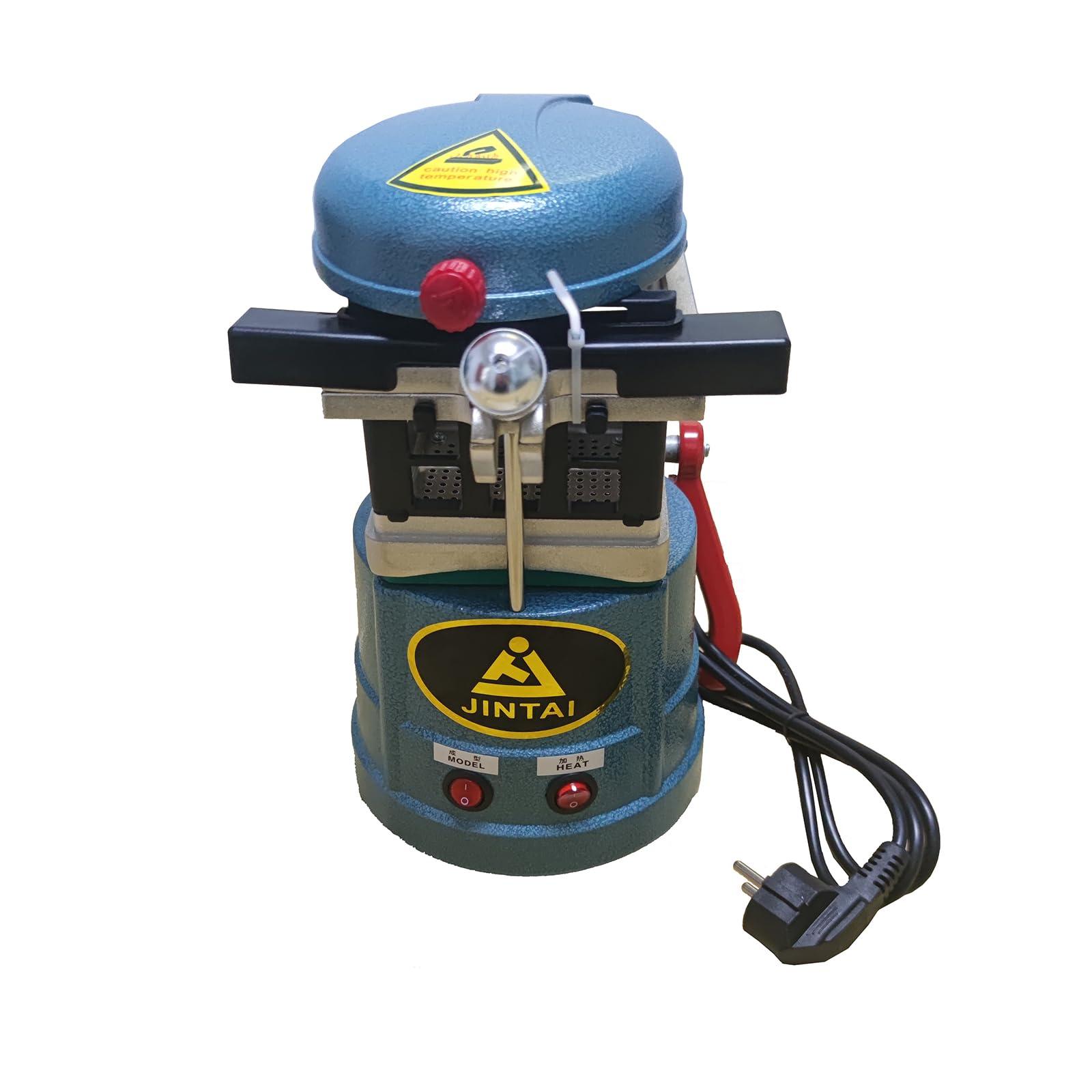

Description
- Adopt a symmetrical heating system, ensuring uniform heat distribution. Non-rotating sliding frame makes operation easy and stress-free. Adjustable and rust-resistant body accommodates various materials.
- This vacuum former is strategically placed below its perforated stage, which creates a direct downward suction, ensuring the utmost precision.
- Wide Range of Applications: Vacuum forming machines can be used for the molding and fabrication of decolorized braces, orthodontic retaining appliances, arch splints, periodontal and fluoride treatment trays, as well as for the molding and fabrication of temporary and permanent abutments and retainers.
- Durable and Convenient: Our vacuum forming machine will withstand years of rigorous use and prove to be an indispensable tool for any dental office. we can offer the item that suitable for worldwide country voltage.
- Technical Parameters: Power supply voltage: 220V/50Hz10% 110V/60Hz10%, Power supply: 1000W, Dimensions: 252130cm (9.84*8.27*11.81inch), Machine weight: 6kg
1.Vacuum molding machine use:
(1) Molding and fabrication of decolorized braces
(2) Molding and fabrication of orthodontic retainers and arch splints
(3) Molding and fabrication of periodontal and fluoride treatment trays
(4) Molding and fabrication of temporary and permanent base trays and mouth guard trays
2. Operating instructions
(1) Pull up the drawbar first, then place the trimmed plaster model on the vacuum net.
(2) Put the film in the sandwich and tighten the fixing screw knob.
(3) Turn on the heating switch to observe the softness of the film, and wait until the film is heated evenly.
(4) Press the lever down so that the heated soft film covers the plaster model.
(5) Turn off the heating switch, turn on the vacuum switch, vacuum for 10-15 seconds, braces can be molded.
(6) First, use a pen to mark the outside of the film according to the gingival margin.
(7) After the film cools down, use scissors or abrasive pads to remove the excess film according to the marking to complete the braces.
3.Technical Parameters
Power supply voltage: 220V/50Hz10% 110V/60Hz10
Power supply power: 1000W
Dimension: 252130cm
Weight: 6kg
